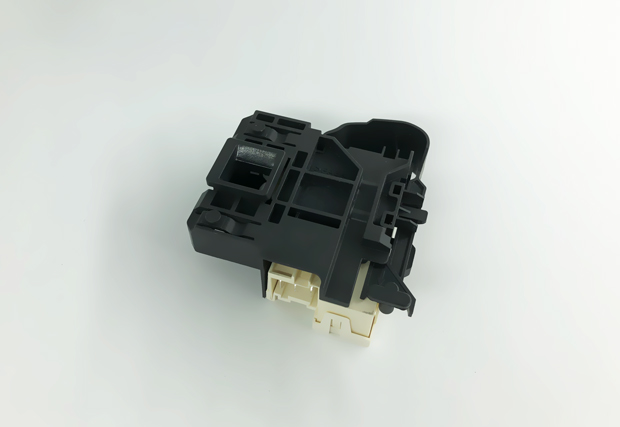

Model

KM-20C

Rated voltage

AC220V-AC240V

Resistance （25℃）

/

Frequency

50Hz/60Hz

Contact capacity

DC5V/10mA

Electrical strength

Apply a 50/60Hz sine wave test voltage of 1500V/1 minute between the terminal and the uncharged metal part. There should be no breakdown or flashover

Insulation resistance

Insulation resistance between live part and uncharged metal part is more than  100MΩ

Fire proof

withstands 850℃ glow wire test

Mechanical strength

Non-locking door opening resistance: The door hook is inserted into the door lock. When the door lock is in the unlocked state, the door hook can be opened with a vertical force of 35-45N, and the door lock is normal

Comparative Tracking Index

PTI250

Lock time

Immediately lock when power on

Unlock time

Immediately open when power off

Reliability

10000 cycles

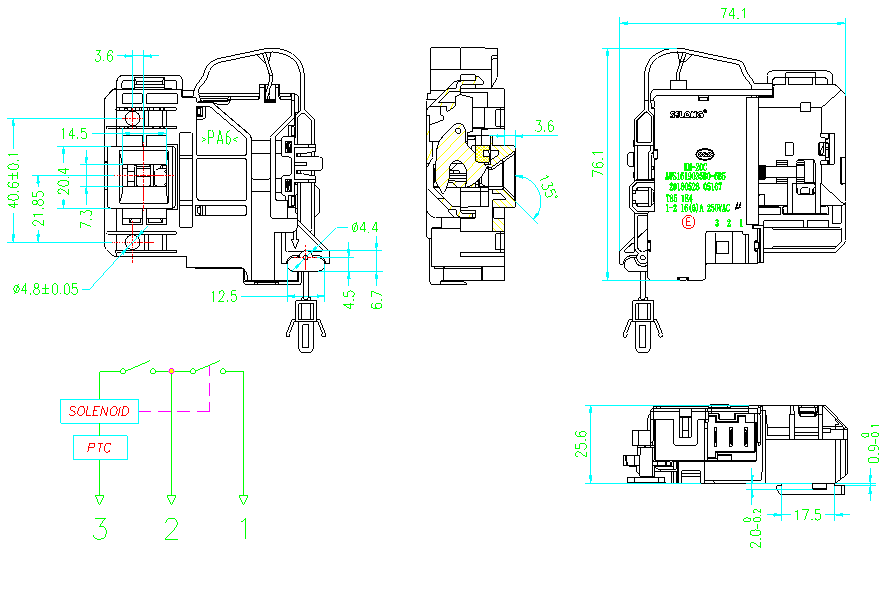

Terminal pin

/

Environment friendly

Conform to RoHS 2011/65/EU
