ZD-6

ZD-6 LED down lamp

LED lamp is a supporting product of drum washing machine.It is used to lighting when put clothes into the washing machine.

SPECIFICATIONS

Model

ZD-6

Power

0.3W

Voltage

DC5.0V

Current

90.0±10.0

Drive method

Constant current drive

Color temperature / wavelength

3000/4000/5000/6000K

blue light 460-470nm, green light 520-530nm, red light 620-640nm

Luminous flux

25-36LM  4-8LM  15-25LM  5-10LM

Color rendering index

Ra≥80

Material

PC

IP level

IP65

Connector

2P/3P


Working Environment

Working temperature: -30℃~45℃

Humidity: 5%~95%RH

Storage temperature: -30℃~50℃

No gas, steam, chemical deposits, dust, dirt and explosive corrosive media that seriously affect electrical insulation in the installation site.

No severe vibration or bumps in the installation site.

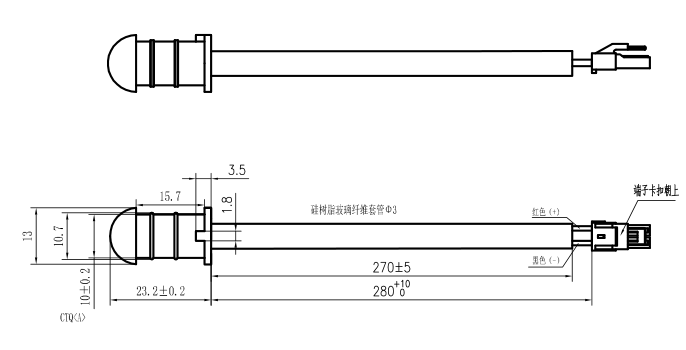

Dimension















ACKING

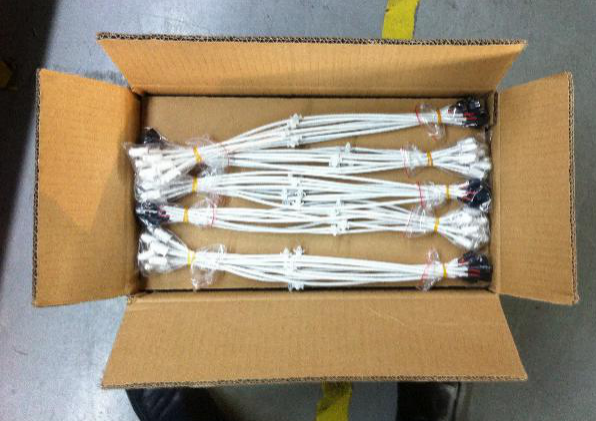

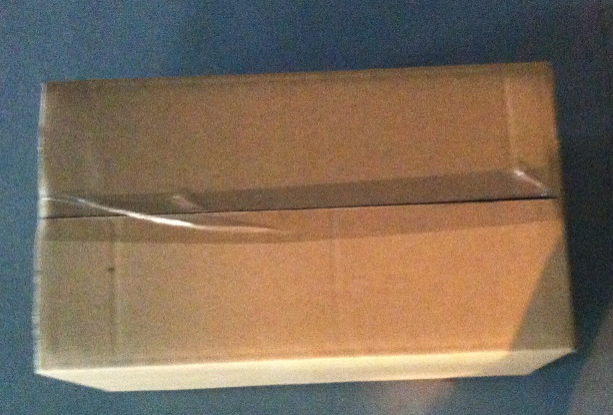

 Every 10 pieces in one bundle. Cover the connector and lampshade with ziplock bags. Every 5 bundles on one layer.There are totally 5 layers (250pcs) in one carton box.
