Slant down lamp LED down lamp

Slant down lamp LED down lamp

LED lamp is a supporting product of drum washing machine.It is used to lighting when put clothes into the washing machine.

SPECIFICATIONS


Model

inclined lamp

Power

0.3W

Voltage

DC5.0V

Current

90.0±10.0

Drive method

Constant current drive

Color temperature / wavelength

3000/4000/5000/6000K

blue light 460-470nm, green light 520-530nm, red light 620-640nm

Luminous flux

25-36LM  4-8LM  15-25LM  5-10LM

Color rendering index

Ra≥80

Material

PC

IP level

IP65

Connector

2P/3P





Working Environment



Working temperature: -30℃~45℃

Humidity: 5%~95%RH

Storage temperature: -30℃~50℃

No gas, steam, chemical deposits, dust, dirt and explosive corrosive media that seriously affect electrical insulation in the installation site.

No severe vibration or bumps in the installation site.

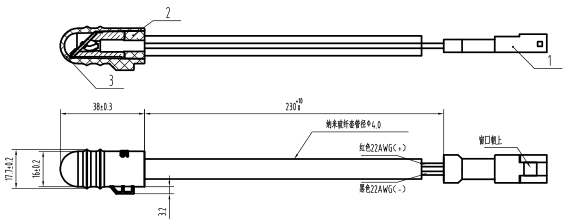

 Dimension
